The 20' Electric Launch
'Whisper'

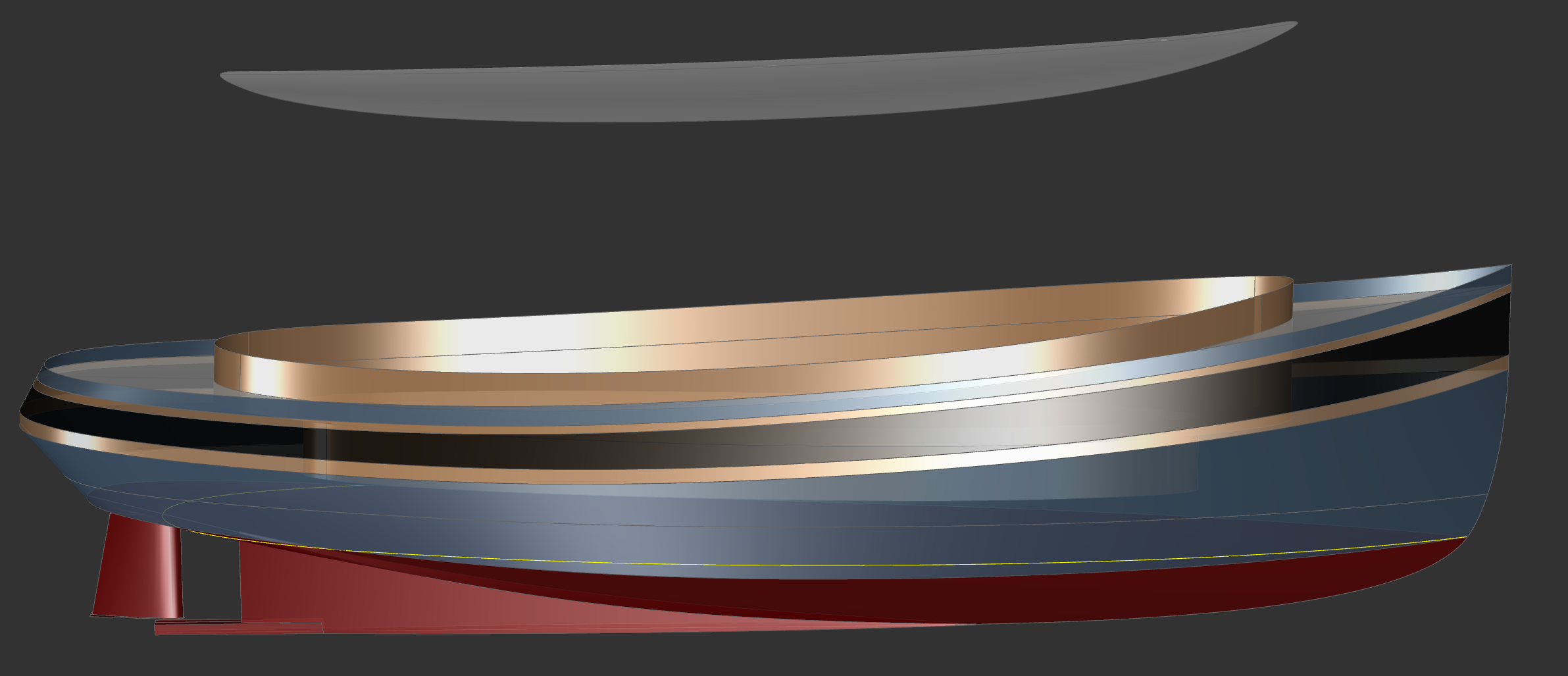

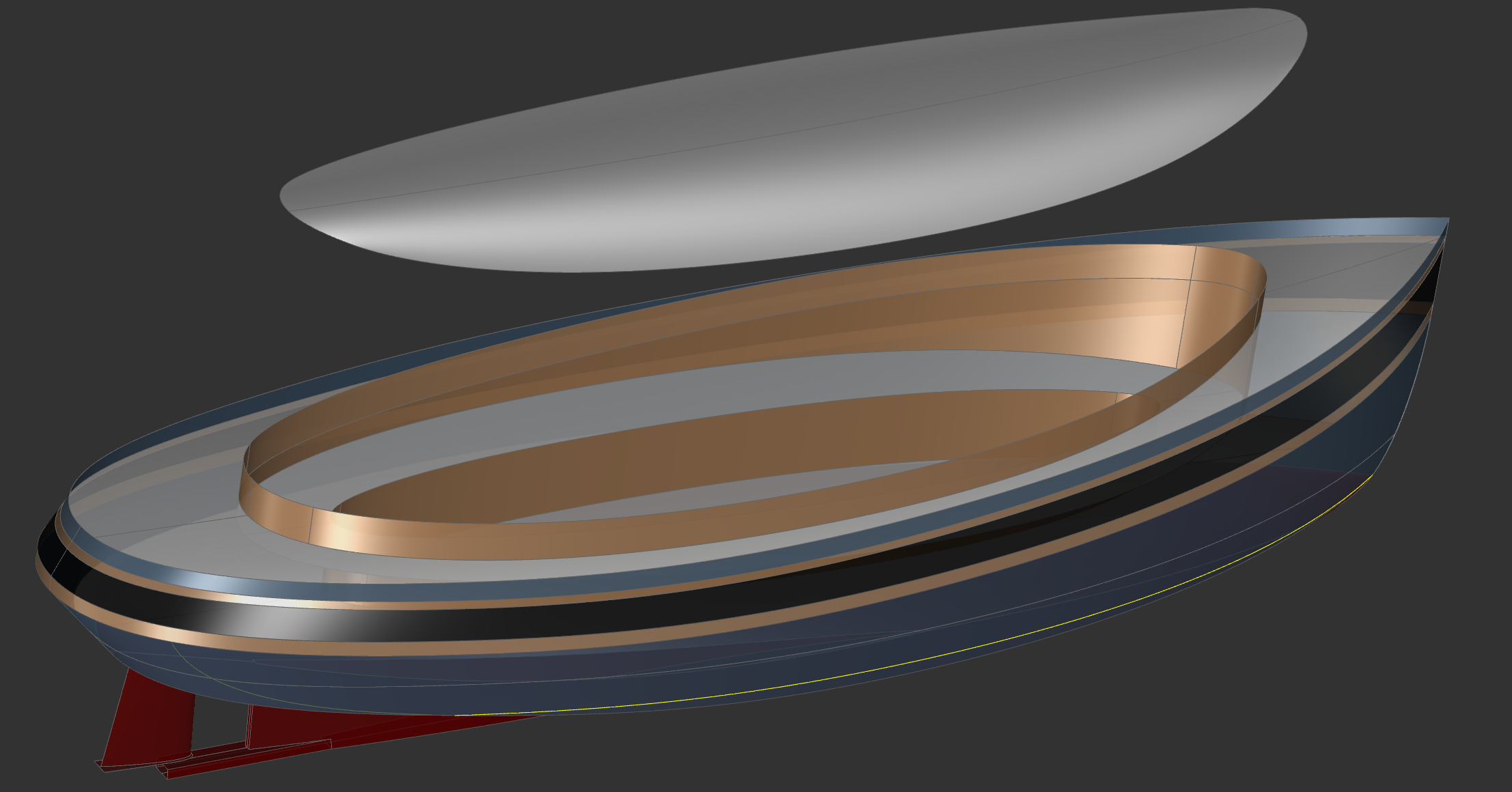

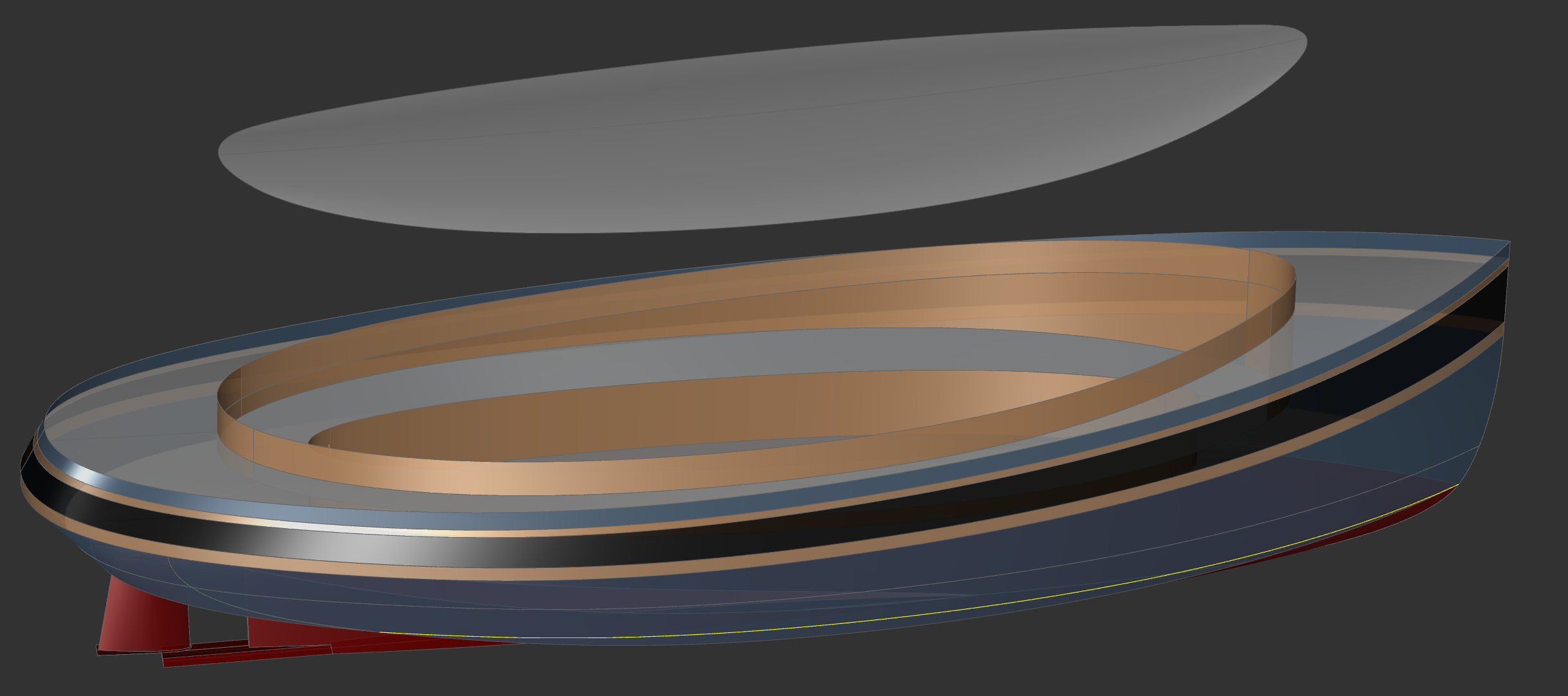

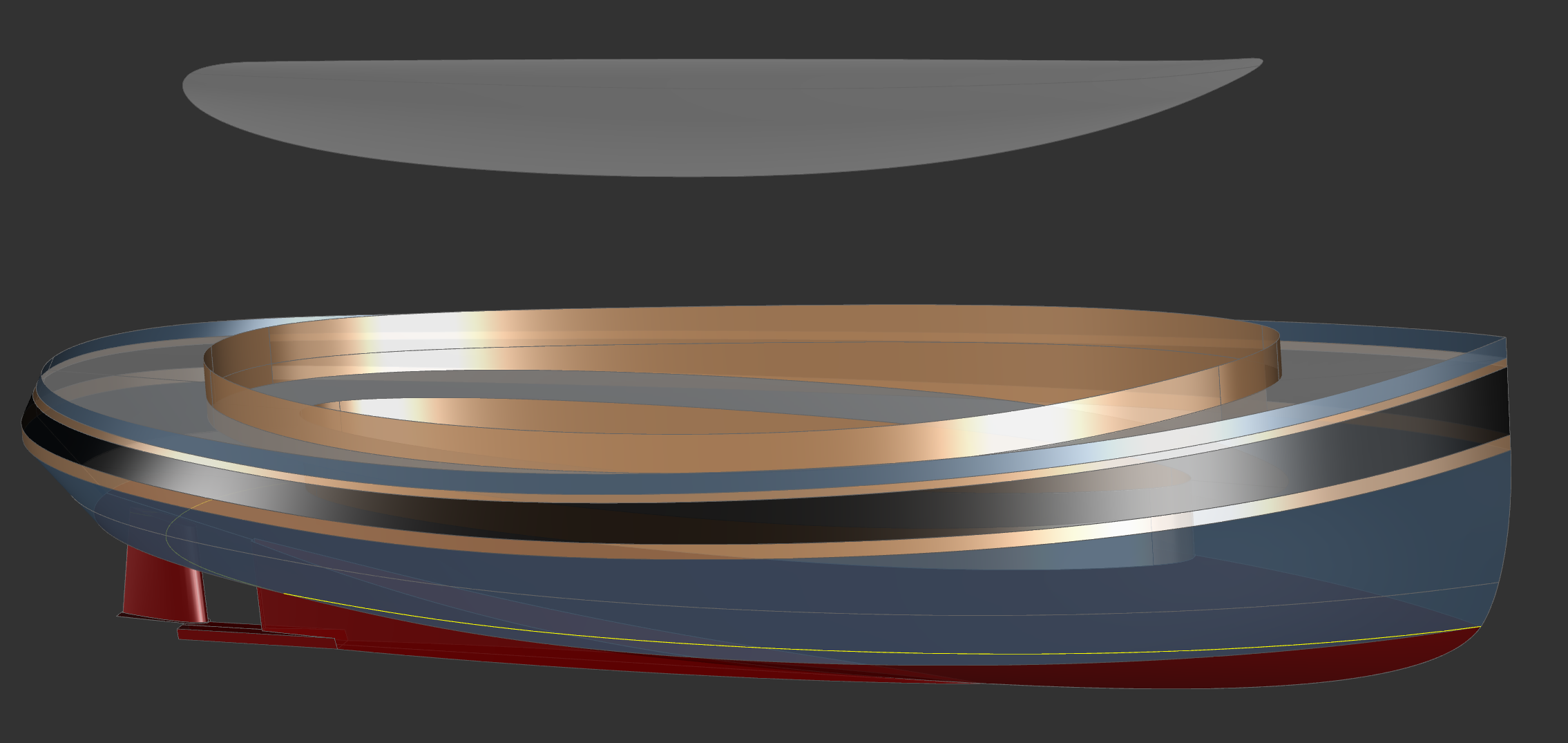

Perspective Aft | Perspective Forward | Perspective Above Side | Hydrostatics Model
Copyright 2015 Michael Kasten
General Concept
Styled after the 25' Boojum and the 18' Pumpkin Seed, the concept behind WHISPER is to create a trailerable electric-launch for harbor cruising under power in complete silence. A highly capable hull form suited to inshore travel or even coastwise cruising. Intended for construction in all aluminum alloy, it is quite light, but still extremely robust. The wrap-around seat and sole are water tight, so there is positive buoyancy even when flooded.
Plenty of dry storage is accessible outboard of the seat coaming and below the seat via WT ports. The entire region below the sole is a separate water tight compartment containing batteries, water tanks, the electric propulsion motor, and the steering system. A WT compartment forward contains a slide-out galley. The steering station is aft, with enough seating all around for a party of six to eight.
The images here show a Bimini cover, which could be canvas with a stylish fringe around it, or could be a lightweight alloy or carbon fiber canopy. In either case, vinyl weather cloths can provide protection when the weather is less cooperative. Alternately for exploring estuaries, mosquito netting might be very welcome. In any case, the interior is open and sufficiently large for comfortable camping.
Hull Form
As with the larger boats in the Boojum series, the hull is designed after that of a working tug in order to get the largest carrying capacity within the smallest overall length. Beam has been limited to 7' to allow trailering without being a "wide load" and without requiring a permit.
Particulars are:
- 20' LOA
- 17.5' DWL
- 7' Beam
- 1'-8" Draft.
- 3,100# Displacement
With an average of 400 lb per inch of immersion, WHISPER has sufficient capacity for carrying several adventurers, plus ample stores and water. The electric motor need not be more than around 10 hp, which should provide a speed of 6 knots. Ideally, cruising will be done at a slower pace, allowing much greater range.
Can there be a more ideal small motor launch for trailering and coastwise cruising?

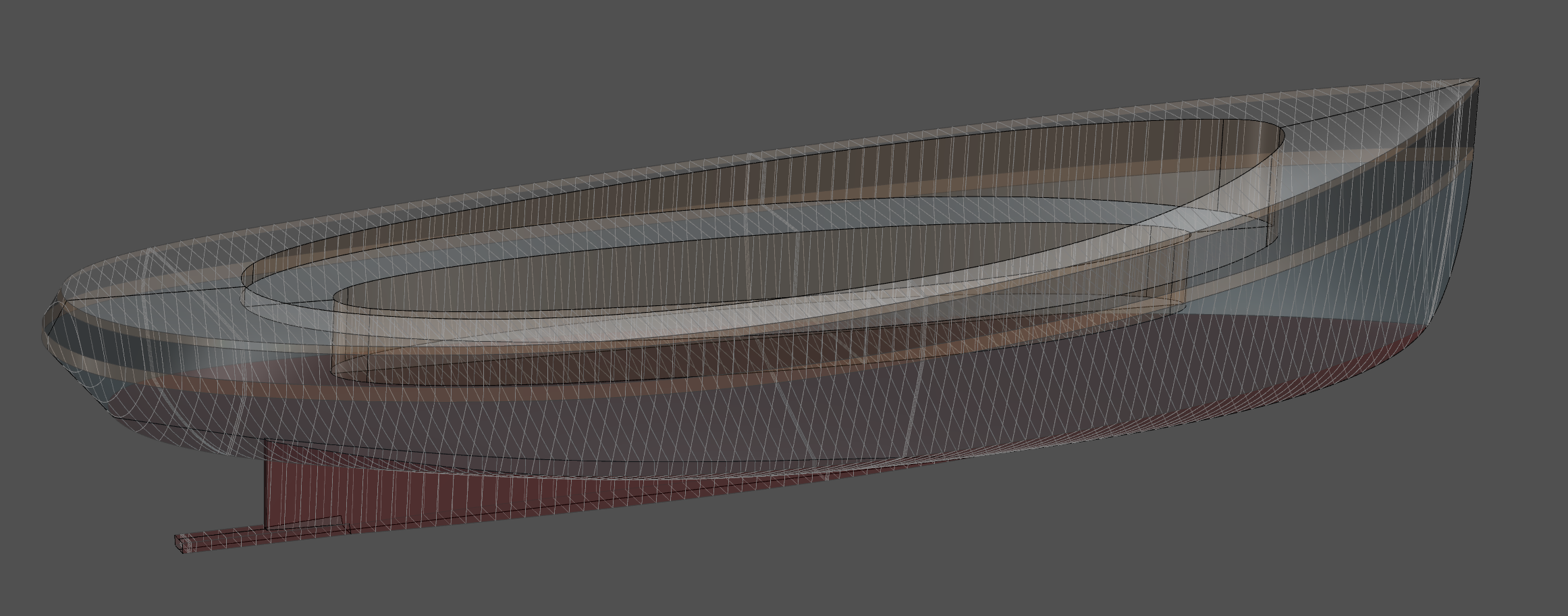

The Hydrostatics Model - Click for Larger ImagePerspective Aft | Perspective Forward | Perspective Above Side
